Buy RSL PB Online in India from Rudrra Sensors

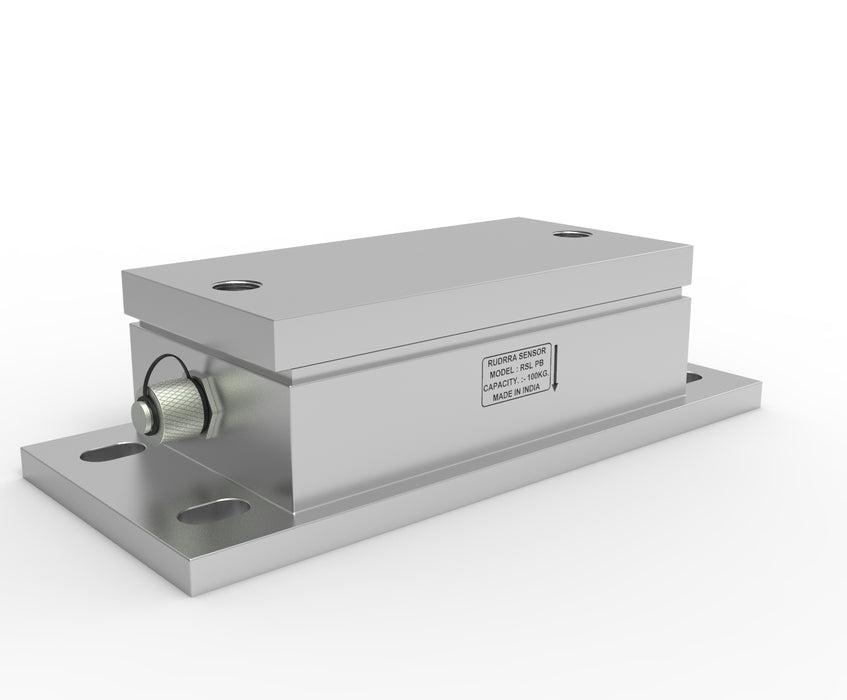

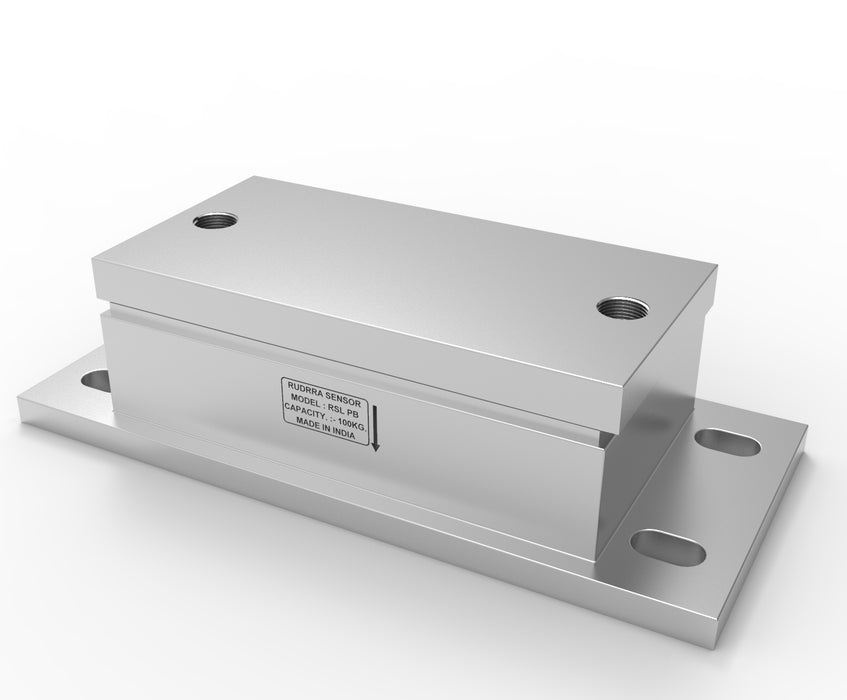

Description of RSL PB

Can be used in conjunction with ordinary guide rollers to mount on nearly all popular pedestal bearings. Maximum operating reliability due to overload protection of up to ten times the nominal measuring force (depending on the application). Through 1:25 resolution, the measuring range is quite large. Fully assembled double bending section with strain gauges in a full bridge configuration Because of easy access to the pedestal bearings, guide roller replacement is straightforward.
Inquire via WhatsApp

Precision C1
Composition Error 0.1
Rated Output (mv/v) 2.0 mV/V
Non-Linearity (%FS) 0.05
Hysteresis (%FS) 0.02
Repeatability (%FS) 0.02
Creep (%FS/30min) 0.05
Zero Balance (%FS) 1% of rated output
Input Resistance (Ω) 395 ± 10Ω
Output Resistance (Ω) 350 ± 2Ω
Insulation Resistance(MΩ) ≥5000(100VDC)
Excitation Voltage (V) 5V to 12VDC
Compensated temp. Range (°C) -10 to +40
Working Temp. Range (°C) -10 to +55
Temp. Effect on Zero (%FS/10°C) <0.02 % R.O /5°C
Temp. Effect on Span (%FS/10°C) <0.02 % R.O /5°C
Safe Overload (%FS) 150% Full Scale
Ultimate Overload (%FS) 200% Full Scale
Defend Grade IP55
Cable 5Mtr 4Core 6mm OD
