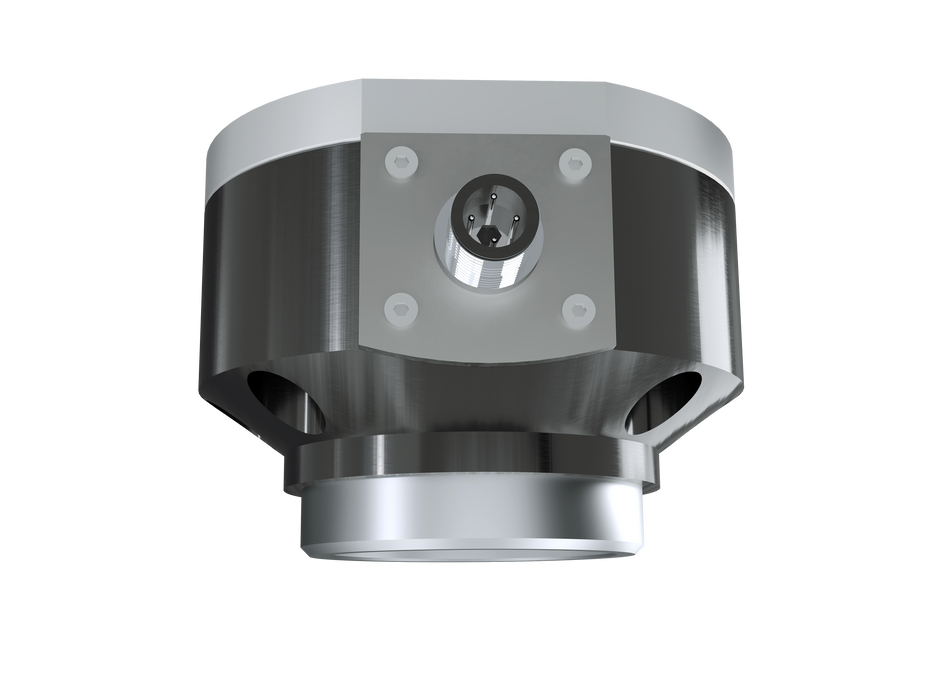

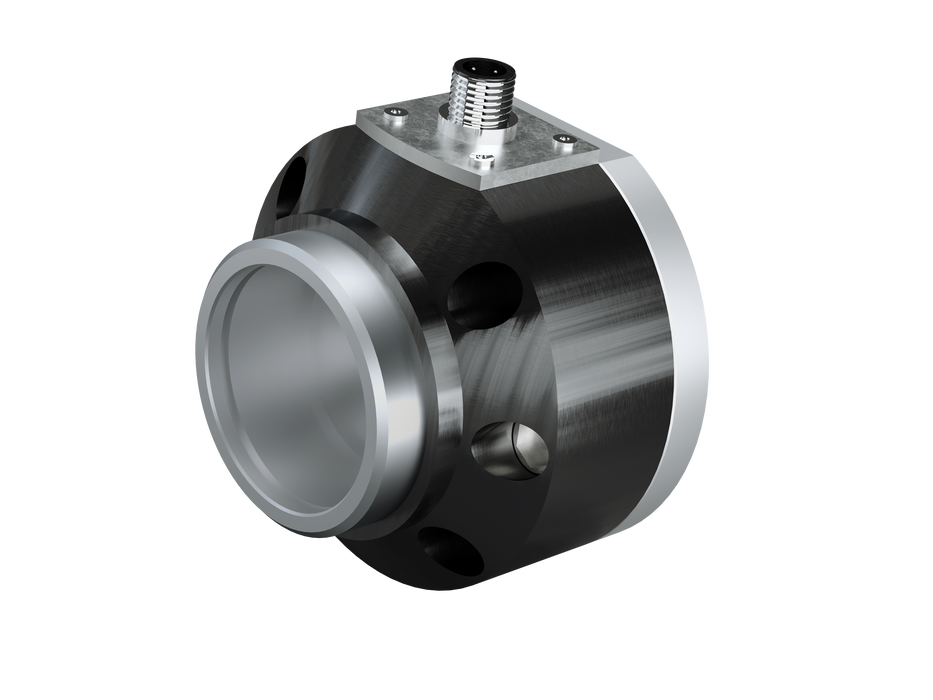

Buy Best RS L Online in India

The load cell used for web tension management is composed of two parts: an outside circle that is stable and flange-covered, and an inner circle that is also stable and flange-covered.

RS L series load cells are mainly used for online tension measurement in rotary shaft rollers.

Main industry which can use our web tension load cells are textile industry, plastic and printing industry, paper industry.
Inquire via WhatsApp

Precision C1
Composition Error 0.1
Rated Output (mv/v) 2.0 mV/V
Non-Linearity (%FS) 0.05
Hysteresis (%FS) 0.02
Repeatability (%FS) 0.02
Creep (%FS/30min) 0.05
Zero Balance (%FS) 1% of rated out put
Input Resistance (Ω) 395 ± 10Ω
Output Resistance (Ω) 350 ± 2Ω
Insulation Resistance(MΩ) >5000 @ 100VDC
Excitation Voltage (V) 5V to 12VDC
Compensated temp. Range (°C) -10 / +40°C
Working Temp. Range (°C) -10 to +55°C
Temp. Effect on Zero (%FS/10°C) < 0.02 % R.O /5°C
Temp. Effect on Span (%FS/10°C) < 0.02 % R.O /5°C
Safe Overload (%FS) 150% Full scale
Ultimate Overload (%FS) 200% Full scale
Defend Grade >IP55
Cable 5 Mtr 4 Core shielded 6mmOD
