Buy RSL-601-AC Online in India

RSL 601 AC Beam load cells are available in a variety capacities to meet the demands and requirements of a broad range of applications. Their length causes them to have a low horizontal profile, which is advantageous.

As a consequence of the application of a weight, it is possible for parts of a bending RSL 601 AC beam weight sensor to bend or curve in certain directions. Because they are utilized in lower-capacity applications, they can generate significant strain or flex even when subjected to relatively modest stresses.

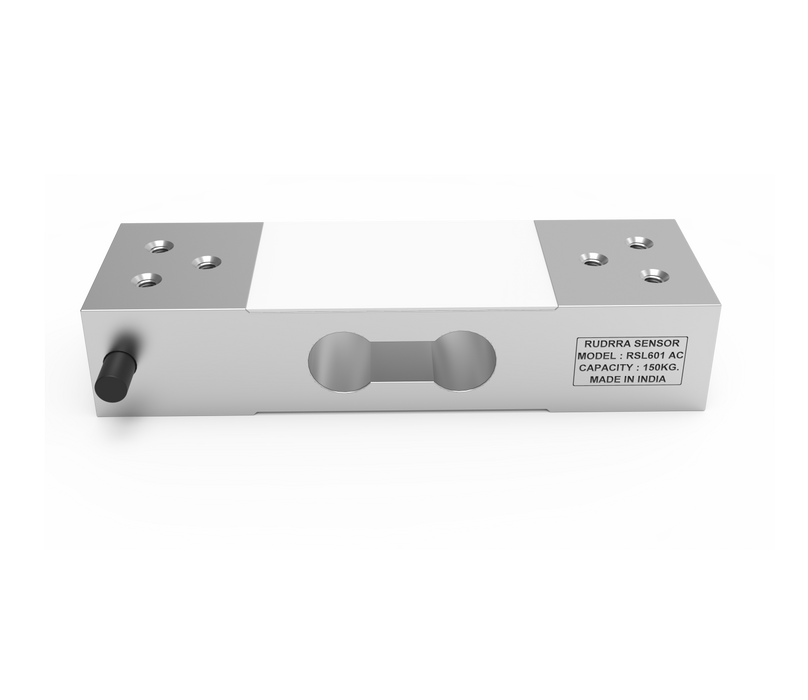

The Bench Scale Load Cell RSL 601 AC is a product that we make. Our ability to supply our clients with the greatest possible level of quality is made possible by the fact that we exclusively utilize cutting-edge technology and software. Every one of our cells is constructed in strict line with industry norms and regulations, as well as individual client requirements . These are the distinctive qualities of our product categories: exceptional capacity, innovative designs, and gigantic sizes.

Inquire via WhatsApp

Precision C2
Composition Error 0.03
Rated Output (mv/v) 2 ± 0.2 mV/V
Non-Linearity (%FS) 0.03
Hysteresis (%FS) 0.03
Repeatability (%FS) 0.02
Creep (%FS/30min) 0.02
Zero Balance (%FS) ± 1%
Input Resistance (Ω) 400 ± 10
Output Resistance (Ω) 350 ± 2
Insulation Resistance(MΩ) ≥5000(100VDC)
Excitation Voltage (V) 5~12 (VDC)
Compensated temp. Range (°C) -10 to +40
Working Temp. Range (°C) -20 to +55
Temp. Effect on Zero (%FS/10°C) 0.03
Temp. Effect on Span (%FS/10°C) 0.03
Safe Overload (%FS) 150
Ultimate Overload (%FS) 200
Defend Grade IP67
Cable 0.4 Mtr 4Core 4mm OD
