RSL 307

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Original price Rs. 12,000.00 - Original price Rs. 12,000.00
Original price
Rs. 12,000.00
Rs. 12,000.00 - Rs. 12,000.00
Current price Rs. 12,000.00

Buy Top-Quality RSL-307 in India at the Best Price



It is widely recognized that Rudrra Sensor is the industry leader in the manufacturing and supply of Rope Tension load cells of RSL-307. When it comes to selecting the most appropriate tension measuring equipment for your organization, we've been in the business since 2002, assisting our customers in achieving measurable quality control by delivering precise, dependable, and long-lasting devices. Our price-to-performance ratio has been certified by both national and international organizations, ensuring that you get the greatest deal possible.

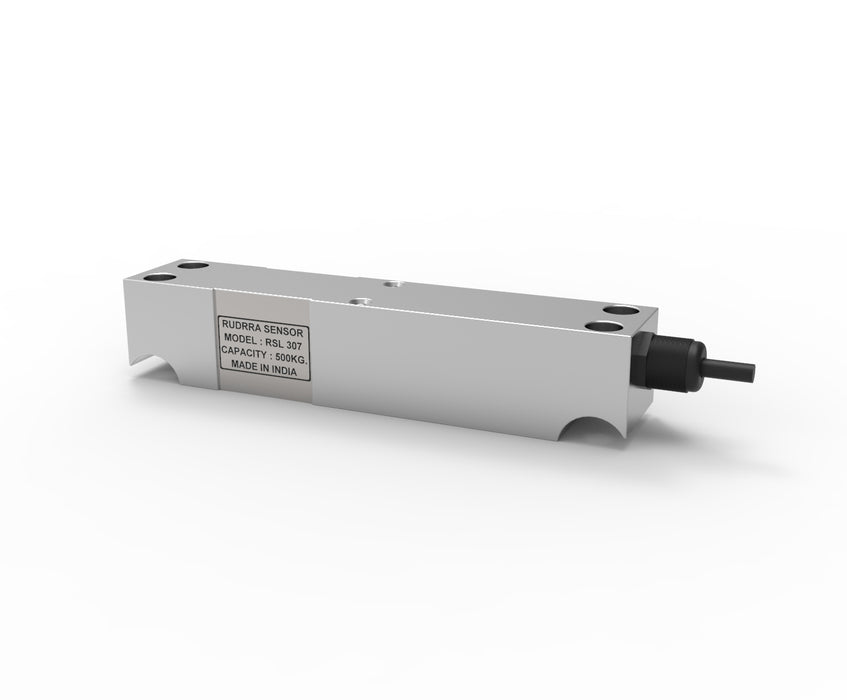

This Rope Tension load cell of RSL-307 is up to the task when it comes to winching, hanging crane scales, and lifting systems. Shackles, wire rope, and other rigging can be attached to the RSL-307 load cell's two open ends, which are located on either side of the cell. These hanging scales have a weight capacity ranging from 0.5Tf to well over 0.7Tf, depending on the model. The parameters of the dynamometer, such as the power, size, and safety components, can be tailored to the customer's specifications. Temperature regulation and environmental sealing are included as standard on every tension load cell manufactured.

Because of the unique electronic equipment that they provide , Rudrra Sensor is the greatest source in the industry. If you have any queries or issues, please do not hesitate to contact us at any time.

Inquire via WhatsApp

Precision C1
Composition Error 2 to 5%
Insulation Resistance(MΩ) >1000 Mega Ohms
Excitation Voltage (V) 24 VDC
Compensated temp. Range (°C) 0-60 °C
Working Temp. Range (°C) 0-60 °C
Safe Overload (%FS) 150%
Ultimate Overload (%FS) 300%
Defend Grade IP55
Cable 10 Mtr 10 Core with 8mm OD
